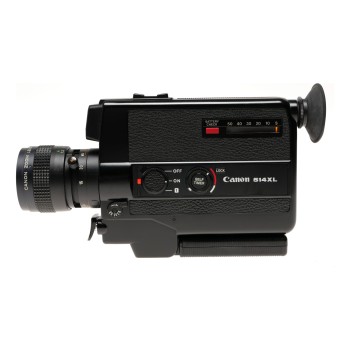

A highly popular and capable Super 8 camera, the Canon 514XL is a top choice for filmmakers and enthusiasts due to its exceptional low-light performance. The XL (Existing Light) designation is thanks to the combination of a very fast zoom lens and a wide 220-degree shutter angle, allowing for excellent results without supplemental lighting.

This camera features the superb integrated Canon Zoom Lens C-8 f/14 9–45mm (5x zoom ratio), which includes Macro focusing capability for dramatic close-up shots. Its compact design includes a folding grip for easy portability and intuitive automatic TTL exposure control, making it a reliable shooter.

Technical Specifications (Canon 514XL)

• Film Type: Super 8 Film Cartridge (Silent)
• Lens: Canon Zoom Lens C-8 f/1.4, 9–45mm (13 elements in 11 groups)
• Filming Speeds: 9 fps, 18 fps, and Single Frame
• Shutter Angle: 220 degrees (XL Shutter)
• Exposure Control: TTL Servo EE with CdS cell (Automatic Exposure)
• Macro Focus: Possible at wide-angle and telephoto ends
• Power Source: 2 x AA Batteries (located in the folding grip)
• Year of Production: Introduced 1975

Condition Report

The camera is in Excellent (EX) cosmetic condition and has been tested for basic functionality.

• Functionality: The motor runs smoothly at all speeds (9 fps, 18 fps, and single frame). The power zoom and automatic exposure system are functional (tested with battery).
• Optics: The Canon 9-45mm f/1.4 lens is clean and clear; no fungus, haze, or separation is noted. The split-image rangefinder is clear.
• Cosmetic: The black plastic body and leatherette texture are clean with minimal wear. The grip folds correctly.
• Inclusions: Includes the original black soft vinyl zippered carrying case and a wrist strap.
