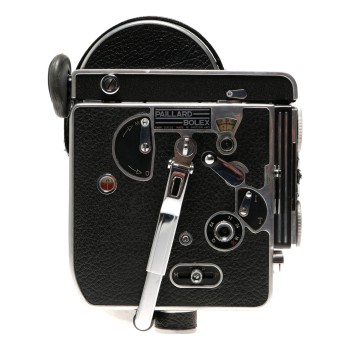

A pristine example of the legendary Paillard Bolex H16 Reflex 16mm motion picture camera. This is a highly sought-after body-only sale, featuring the unique reflex viewing system that allows for through-the-lens viewing at all times, ensuring perfect framing and focusing—a significant upgrade from earlier H16 models.

The REFLEX prism system revolutionized 16mm shooting, and this camera body is ready to be paired with your choice of C-mount lenses (RX designation recommended for optimal performance with 50mm lenses or shorter).

Technical Specifications

• Model: H16 Reflex (Introduced circa 1956)
• Film Type: 16mm Film (100 ft daylight loading spools)
• Lens Mount: C-Mount on a Triple Rotating Turret
• Viewing System: True Reflex (Through-The-Lens) Viewing via prism
• Motor: Spring-Wound (Clockwork) Motor, Constant Speed
• Frame Rates (fps): 12, 16, 18, 24 (Standard Sound), 32, 48, 64 fps, plus single-frame release.
• Shutter: 144 degree fixed shutter (Early Reflex) or 145 degree variable shutter (Later Reflex, depending on serial number)
• Weight: Approximately 5.5 lbs (body only)

Inclusions and Accessories

This listing includes the complete original handling kit:

• Bolex H16 Reflex Camera Body
• Original Leather Carrying Strap
• Original Brown Leather Hard Case (saddle leather style)
• All necessary lens caps (visible on turret)

Condition Report

This camera is in excellent, collector-grade cosmetic condition. The Morocco leather covering and chrome plating show minimal wear for its age. The interior film gate and mechanism are clean.

• Mechanism: The spring-wound motor winds and runs smoothly and consistently at all marked frame rates. The manual rewind and backwind functions operate correctly.
• Viewing System: The reflex viewfinder is clear and bright. The diopter adjustment works properly.
• Turret: The turret rotates smoothly and locks firmly into position.

This H16 Reflex body is a beautiful, fully functional base for building a professional 16mm kit.
