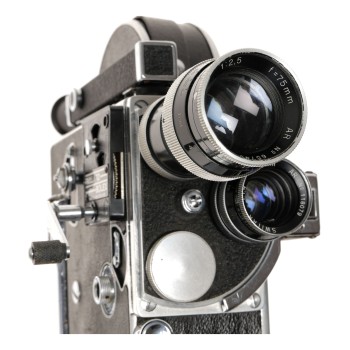

Paillard Bolex H-16 Deluxe 16mm Movie Camera with Two Lenses and Case

Own a piece of cinematic history with this classic, highly-collectible Paillard Bolex H-16 Deluxe 16mm motion picture camera. Made in Switzerland, the H-16 series is celebrated for its unparalleled precision, rugged reliability, and mechanical excellence, making it the choice of independent filmmakers and professional documentarians for decades.

Technical Specifications:

• Model: Paillard Bolex H-16 Deluxe (Non-Reflex model, pre-dating the REX series). The F-25 designation typically refers to a fixed-mount model, but this example features the sought-after Two-Lens Turret for quick lens changes.
• Film Type: 16mm daylight loading spools (100ft max capacity).
• Lens Mount: Standard C-Mount (non-RX type).
• Included Lenses:
  • Kern Paillard Switar 1:1.4 f=25mm (Normal Focal Length)
  • Kern Paillard Yvar 1:2.5 f=75mm (Telephoto Focal Length)
• Shutter Speed Range: Variable speed settings include 8, 12, 16, 18, 24, 32, and 64 frames per second (fps). The fixed shutter angle is approximately 144 degrees, yielding an exposure time of approximately 1/60 second at 24fps. Features single-frame exposures for animation and time-lapse.
• Motor: Spring-wound motor with governor control. Offers forward and reverse operation for fades, dissolves, and superimposition effects. Cannot be overwound.
• Year of Production: H-16 Deluxe production ran in the 1940s and 1950s.
• Dimensions (Approx): 8 1/2 inches x 6 inches x 3 inches (216mm x 152mm x 76mm).
• Weight (Approx): 5.5 lbs (2.5 kg) (body only).

Condition Report:

This H-16 Deluxe is in Good Working Condition. The classic 'kidney-shaped' body retains its original Morocco leather covering with minimal, expected signs of cosmetic wear. The chrome trim is bright. The spring motor winds smoothly and runs well at all speeds. The two Kern Paillard lenses feature clear glass with no fungus or separation; a small amount of internal dust is possible but will not affect image quality. Aperture and focus rings on both lenses move smoothly. Includes the original fitted brown leather carrying case and an empty 100ft spool. A robust and desirable camera for the collector or analog cinematographer.

This non-reflex model is highly prized for its brighter viewfinder and superior light transmission. It represents the pinnacle of Swiss mechanical movie camera design. If this camera is to be used professionally, a service would be recommended
